Wind Turbines

About SD6 Wind Turbine

The SD6 wind turbine comes in two colours, black and white. Black is the preferred colour as they blend into the countryside better.  A single SD6 is often used to power an off-grid house with a diesel generator as backup.  The average house consumes around ten units of energy per day (or 3600 units/year).  The SD wind appropriately sited will produce enough for service power with a little left over to go towards heating, perhaps helping to offset oil, gas or biomass.

SD3 and SD6 Information

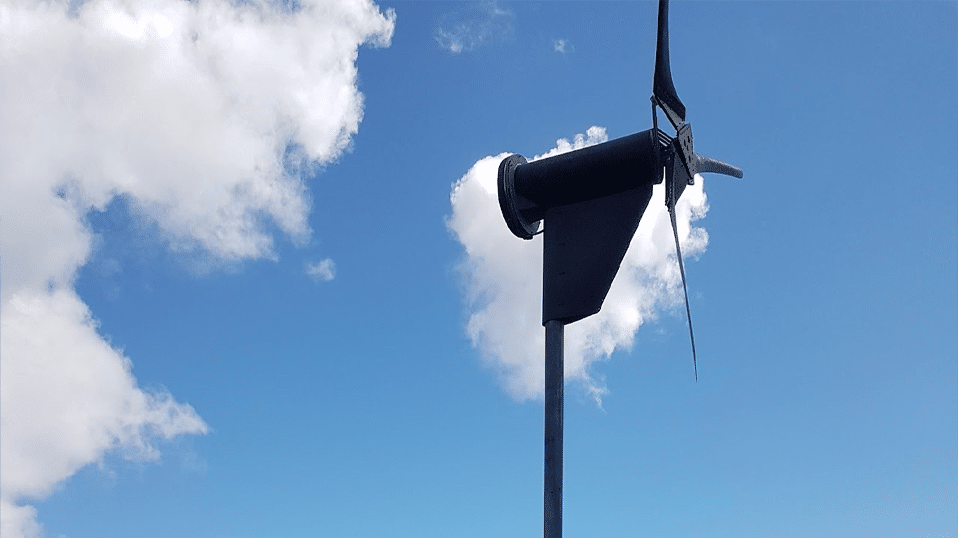

larger wind turbine

SD6 (6kW) Wind Turbine

SD6, 6kW Small Wind Turbine

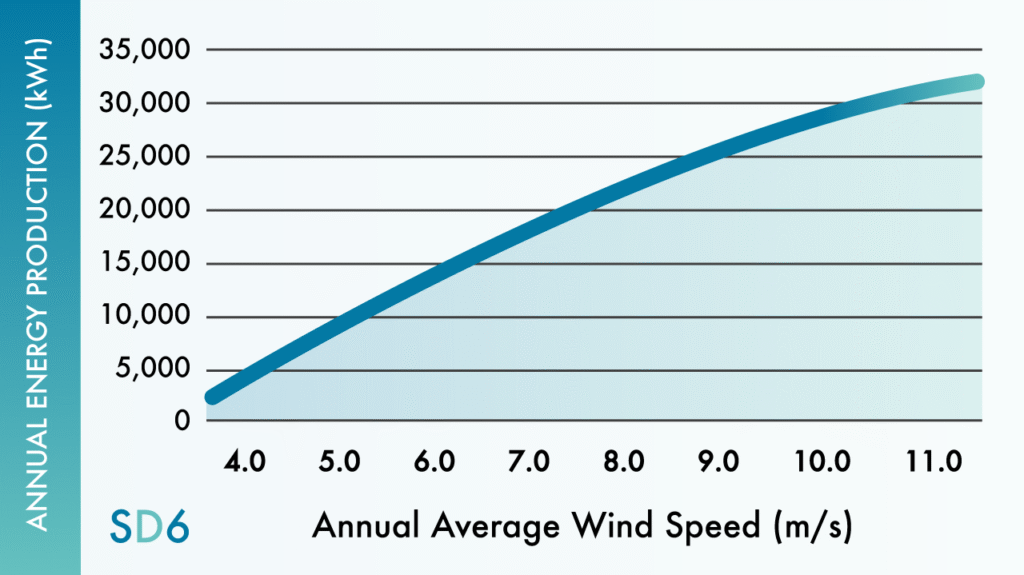

SD6 Energy Production Curve

Most sites have an average of somewhere between 5m/s and 7m/s and produce between 10,000. units (kWh) and 17,000 units (kWh) per annum.

Using the NOABL wind map it is possible to see what the wind in your area is.

SD6 Wind Turbine Specification

  • Peak Power: 6kW
  • Applications: Rural Domestic, Small Holdings, Commercial, Telecoms, Public Sector, Remote Islands
  • Solutions: Grid Tied & Battery Charge, 48V, 120V, 300V
  • Architecture: Downwind, 3 Bladed, Self Regulating
  • Rotor: 5.6m Diameter (maximum 200 RPM)
  • Blade Material: Glass Thermoplastic Composite
  • Generator: Brushless Direct Drive Permanent Magnet
  • Tower Options: 9m / 15m / 20m Taperfit Monopole - Hydraulic
  • Tower Specification: Class 1 Rated / Galvanised Steel
  • Foundation Options: Pad / Root / Rock Anchor
  • Cut In Speed: 2.5m/s
  • Cut Out Speed: None - Continuous Operation
  • Survival Wind Speed: Designed to Class 1 (70m/s)
  • Warranty: 5-Years
  • Cold Climate Options: Available on Request
  • Colour Options: Light Grey (RAL7035) Black (RAL9005)
